100 meters

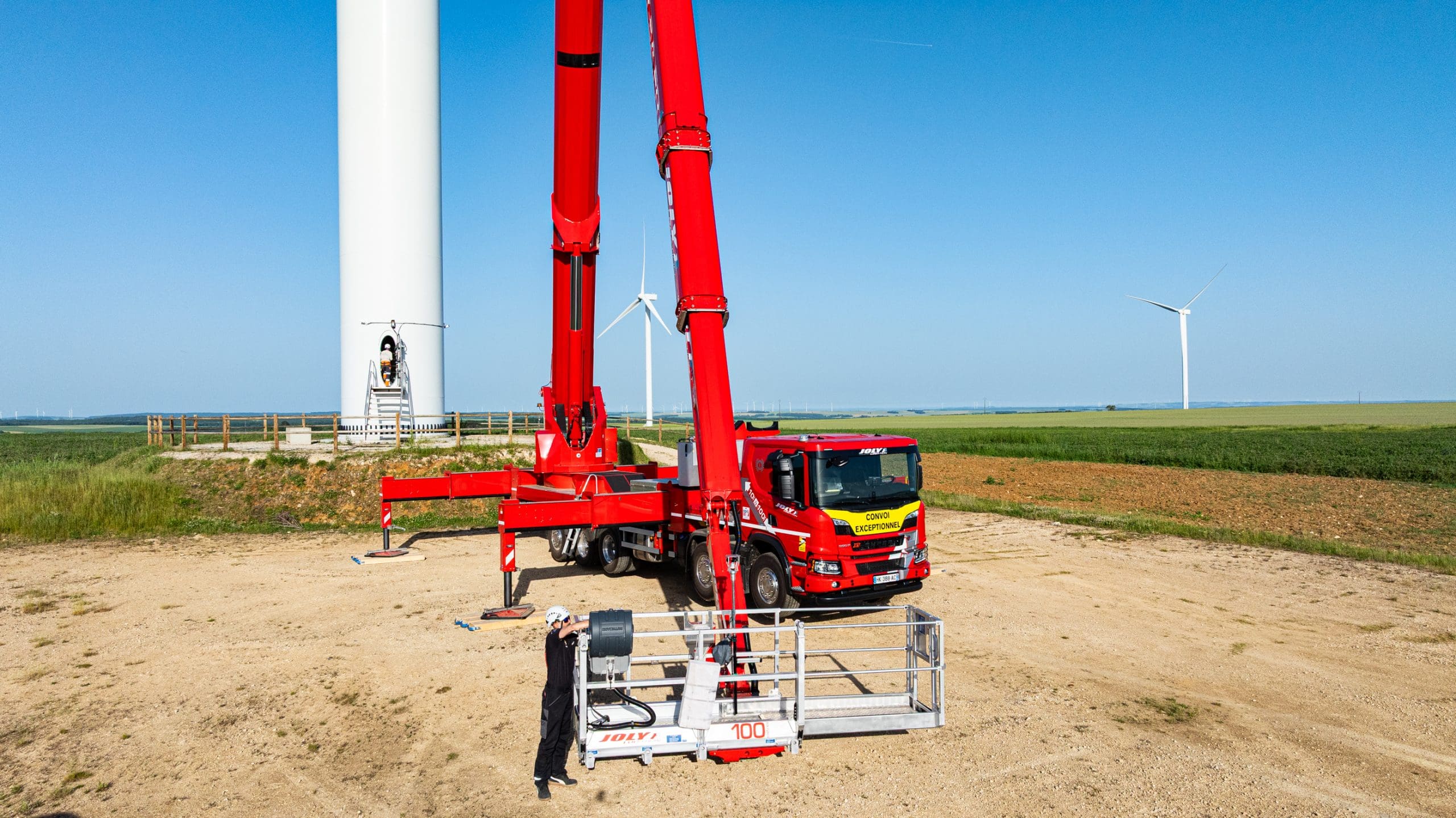

Platform PL/Ruthmann T1000 HF
Chauffeur-driven rental
Working height 100 metres
VERY SERENIUM, quick and easy to set up, flexible and fast, with excellent stability for precision work at great heights!
Lateral offset 39 metres
Load capacity 600 kg including 6 persons
35-metre double pendulum arm
Basket with up lift load system, up to 400 kg
Basket with camera opening and triaxial cable
Basket can be rotated 440° and extended
Stabilization can be limited
Anchor points for safety harnesses
220V generator
Electricity, water and air in the basket
#jolylocation2.0 #nacellegrandehauteur
#nacellepl #skyperformance #bestdriver #locationdenacelle
100 METRES WITH 600 KG LOAD
it's the only 100m machine in the world to have a payload of 600kg at a working height of 90m.
ULTRA MANIABLE
16.40 meters long, 4m high and 53 tons, 3-axle steering, maximum maneuverability whatever the access conditions.
AUTOMATED VARIABLE STABILIZATION
Each stabilizer can be deployed according to the field of operation, depending on the configuration of the site, and fully automated leveling for the shortest possible set-up times.

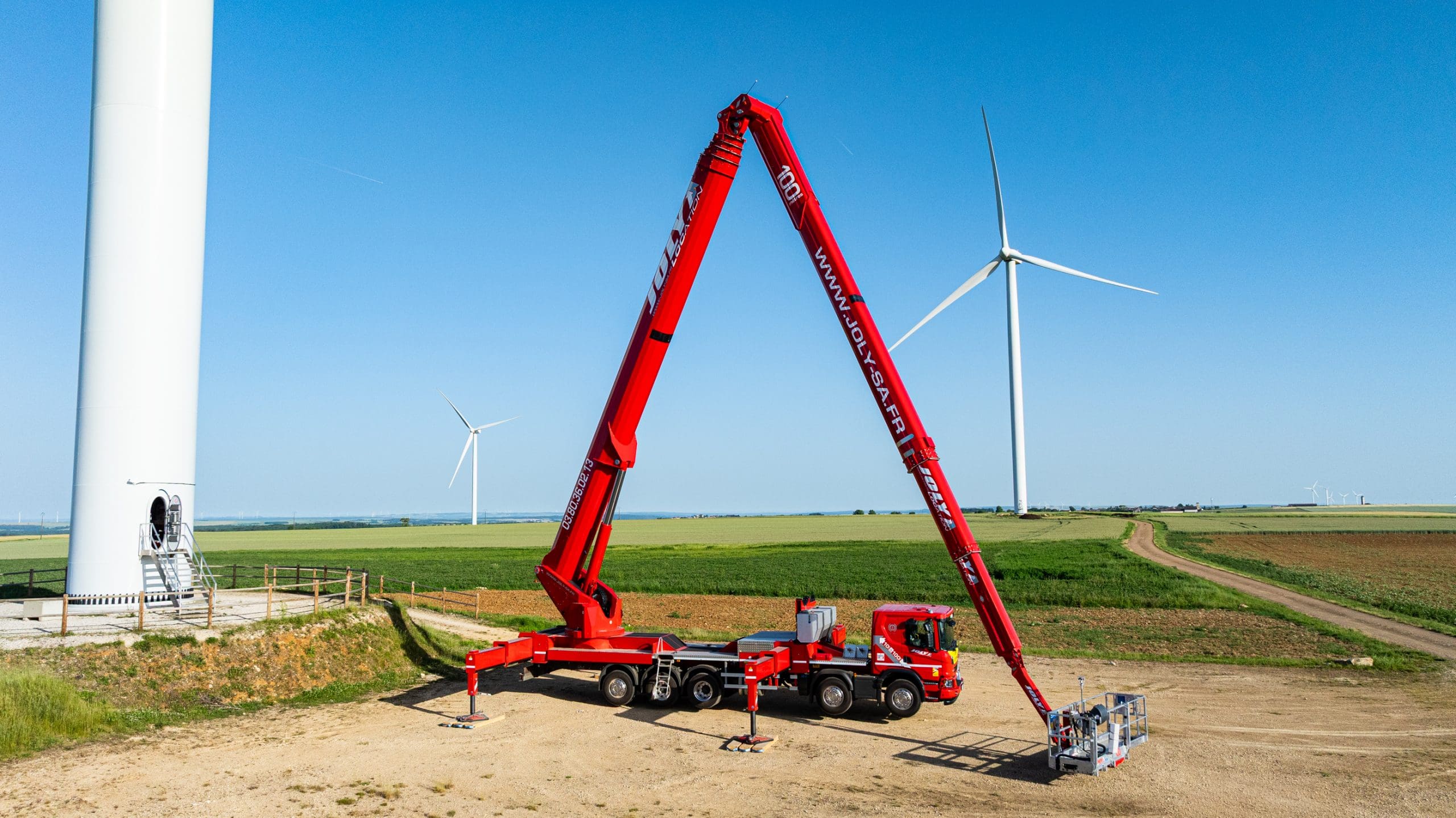

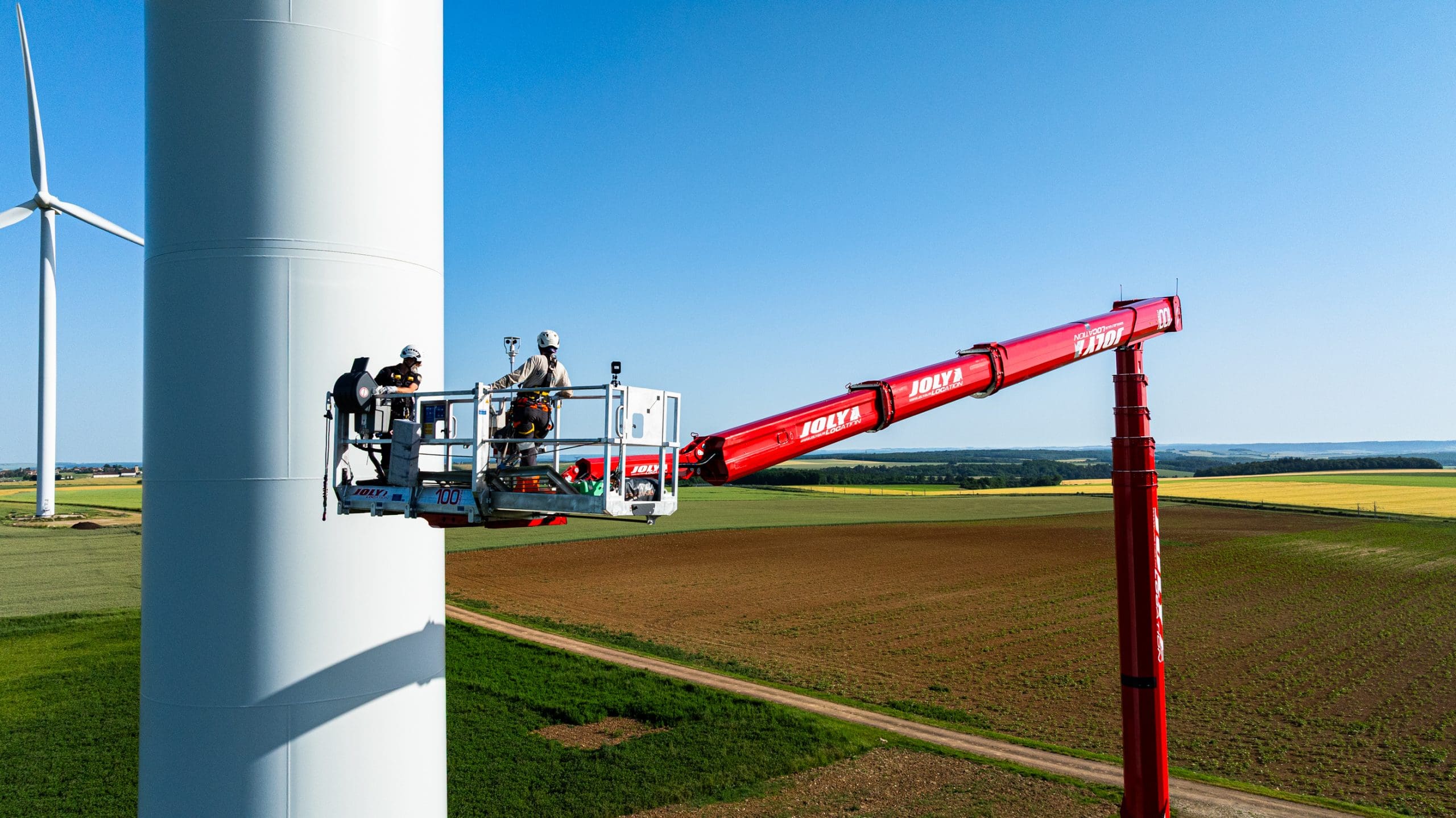

DOUBLE PENDULUM ARM
A RECORD 35 meters in all, the second of which has a 220° field of action, ideal for overcoming many obstacles; added to the 440° extendable swivel basket, the possibilities are endless.

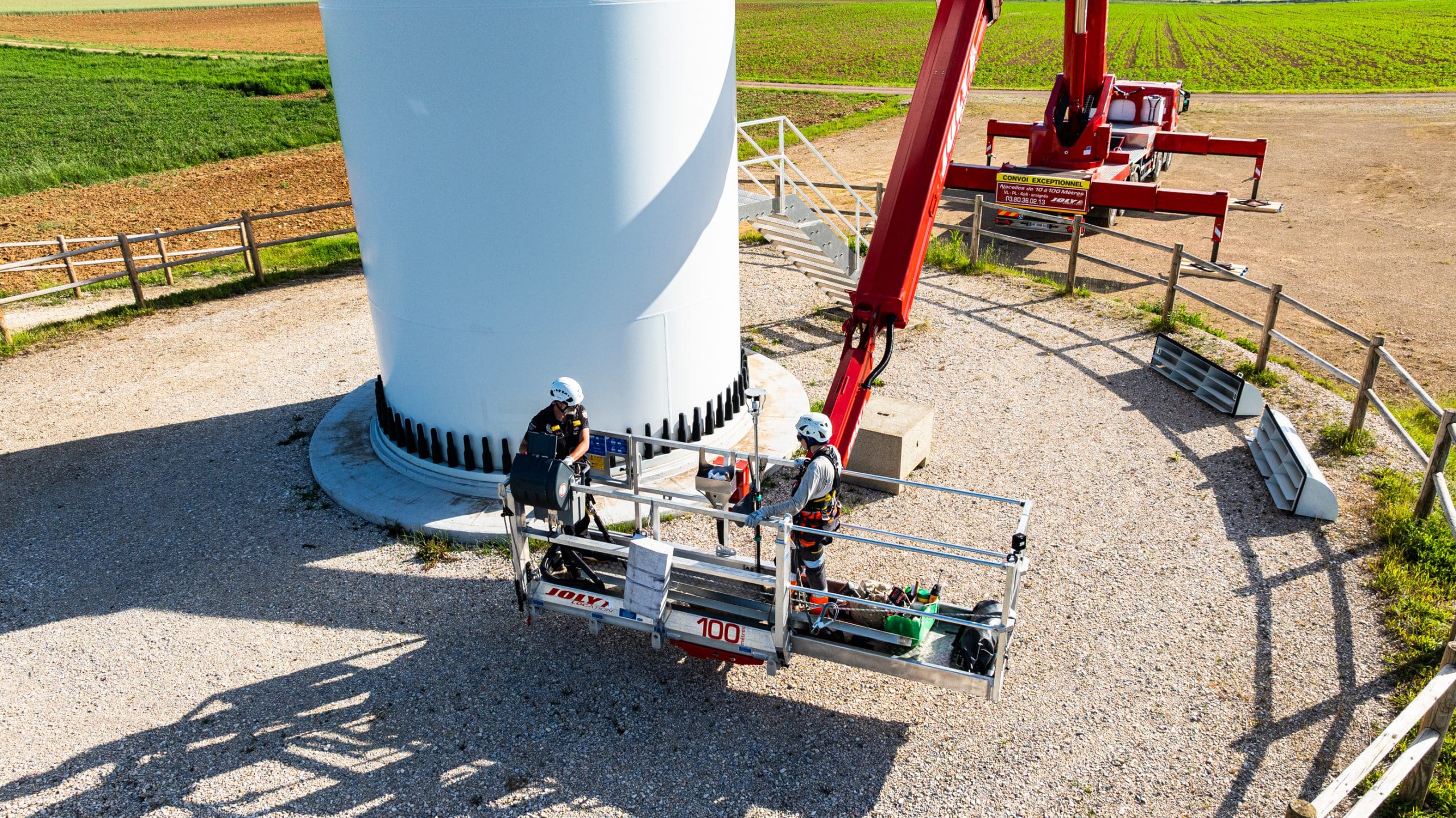

MULTIFUNCTION EXTENDABLE BASKET WITH 440° ROTATION
Sizes from 2.3m x 1m to 3.80m x 1m.
HIGH CAPACITY FOR NEGATIVE WORK
Up to -24 metres with the 440° rotating basket, and a high return under the carriage.
MODE SUPPORT CAMERA BROADCAST
Allows camera mounting and connection via triaxial cable.
UP LIFT SYSTEM
Complete system for transporting material up to 400Kg or 200 Kg per inking point integrated into the basket.
NO CABLES OR HOSES TO DANGLE IN THE AIR
The elevator is equipped with fittings allowing you to route electricity - 220V - compressed air - Kärcher® water into the basket.
220V GENERATOR
Used to power electrical equipment.
39-METRE SIDE OFFSET
Combined with the record-breaking double pendulum arm, this makes it the best-performing machine in any category.
